Tycon Power TP-DCDC-1224G-4P 9-36VDC IN 24VDC 4 Pair POE Out suit AF-5XHD

Tycon Power TP-DCDC-1224G-4P 9-36VDC IN 24VDC 4 Pair POE Out suit AF-5XHD

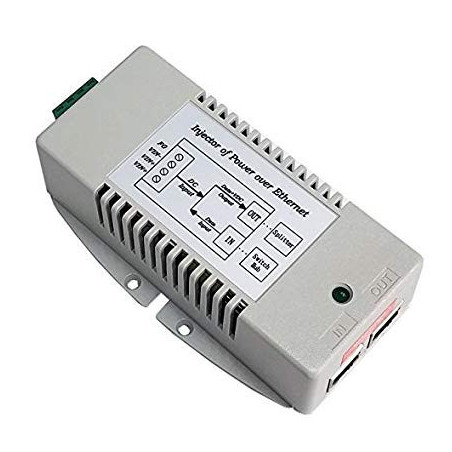

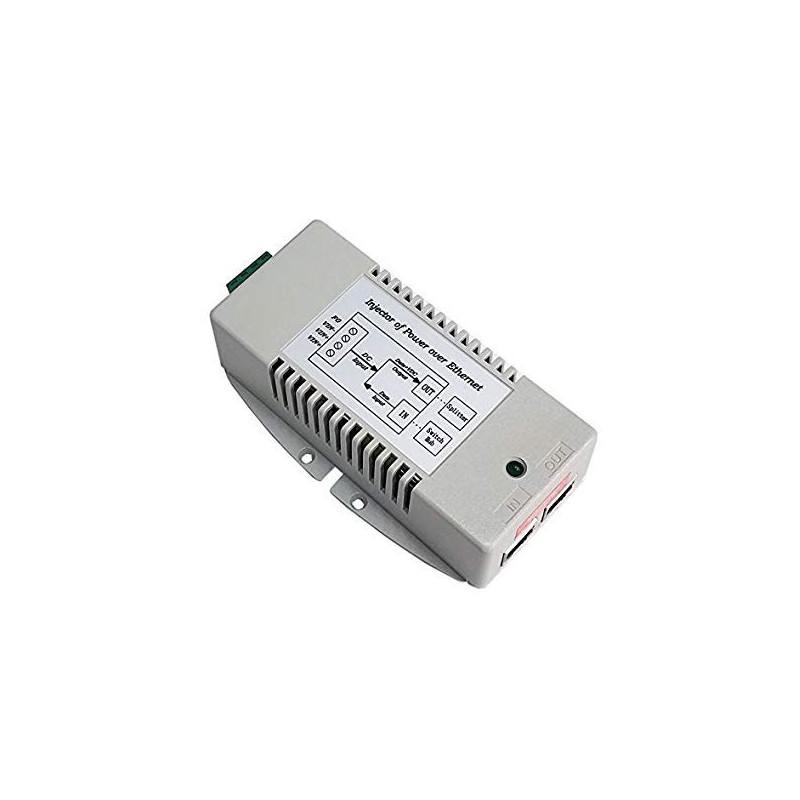

Tycon Power TP-DCDC-1224G-4P is a Gigabit DC to DC converter, with an output power of up to 24W. It features 4 pair Passive Power over Ethernet from a 12-24V source.

TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4-pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery or a system. It has an integrated 4 pair PoE injector to apply the power and data output to the CAT5 cable. It has two inputs for connecting 2 power sources, like a primary and backup source.

Product Features:

•  Input Voltage 9-36VDC
•  24V Gigabit Passive 4 Pair PoE Output
•  Dual Inputs for Connecting 2 Power Sources
•  Integrated 10/100/1000MB PoE Sources
•  High Power up to 24W
•  Short Circuit, Over Current and Reverse/Over Voltage Protect
•  High Temperature Operation to 70°C
•  Built-in Low Battery Disconnect and Surge Protection

Product Applications:

•  12/24V Battery Systems, Vehicle Applications
•  UBNT AirFiber X
•  Wireless Access Points and Client Devices

Product Specifications:

•  DC Input Voltage: 9 - 36VDC, Input / Output is Isolated
•  DC Input Connector: Removable Screw Type Compression Wire Terminal (12 AWG Max)
•  DC Output Voltage: 24V (Passive) 4 Pair Power
•  Data In & Data/PoE Output Connector: RJ45 (shielded)
•  Output Current (max): 1A
•  Output Power (max): 24W
•  Low Voltage Disconnect / Reconnect: Disconnect at 8.9V, Reconnect at 9.02V
•  Efficiency (min): 80%
•  Line Regulation: 1%
•  Load Regulation: 5%
•  Ripple: 1%
•  Noise: 1%
•  LED Operation: RED = Input Power On / Green = Output Connected
•  Surge Protection (IEC 6100-4): 15kV (Air), 8kV (Contact), 20A (8/20us) Lightning
•  EMC Standards: FCC Class B EN55022 Class B
•  Safety Standards: UL1950, CSA 22.2 &TUV EN60950
•  Operating Temperature: -40 to 80°C (-40 to 176°F)
•  Operating Humidity: 5 to 90%
•  Storage Temperature: -40 to 80°C (-40 to 176°F)
•  Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5")
•  Weight: 300g (10.6oz)
•  Warranty: 1 Year
