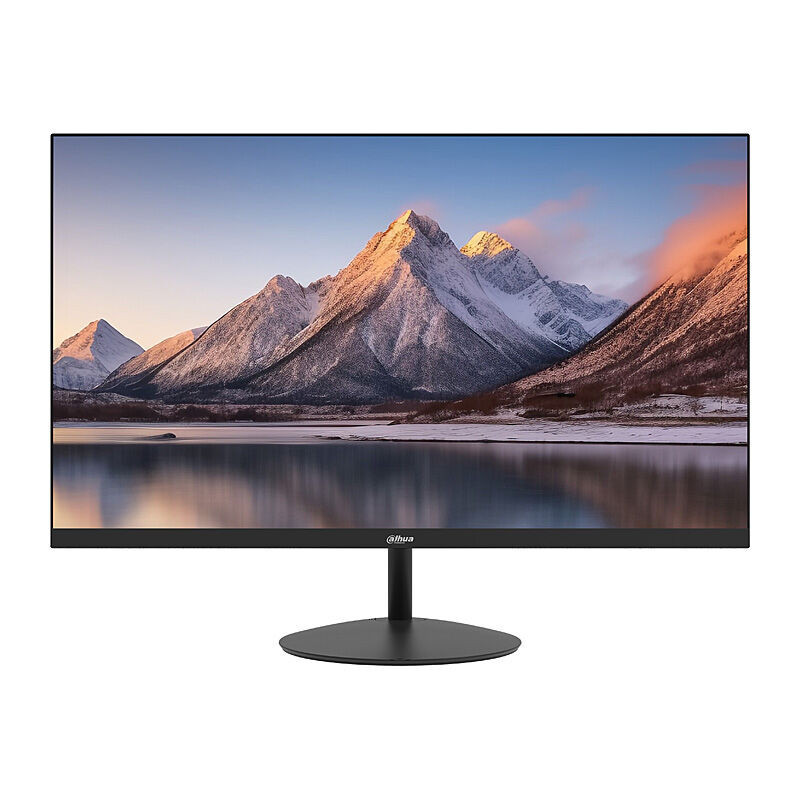

DAHUA A200Y 24'' VA Monitor

Features

• Ultra-narrow bezel, elegant appearance, plastic base
• 178°H/178°V extra-wide viewing angle for overall viewing performance
• High fidelity digital processing for a brilliant and vivid video
• Supports multiple signal inputs such as HDMI and VGA
• 100Hz high refresh rate — eliminates picture lagging

Specifications

Display

• Model: DHI-LM24-A200Y
• LCD Technology: VA
• Backlight: ELED
• Screen Size: 23.8 inch
• Aspect Ratio: 16:9
• Viewing Size: 527.04 (H) × 296.46 (V) mm
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.2745 mm × 0.2745 mm
• Pixels Per Inch: 92.55
• Resolution: 1920 (H) × 1080 (V)
• Refresh Rate: 100 Hz
• Display Color: 8 bit
• Color Gamut: 72% NTCS (typ.)
• Brightness: 250 cd/m²
• Contrast Ratio: 3000:1
• Response Time: 10 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%

Device Ports

• Input Port: 1 × VGA (1080p@60 Hz), 1 × HDMI 1.4 (1080p@100 Hz)

Power & Environmental Conditions

• Power Supply: 12 VDC, 2.5 A
• Power Type: External power adapter
• Power Consumption: 13 W (basic), 16 W (typ.), 16 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–90% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: −5°±2° / 15°±2°
• Product Dimensions: 539.2 mm × 320.4 mm × 41.3 mm (21.229" × 12.616" × 1.624") (W × H × D) without wall-mount bracket
• Package Size: 612 mm × 405 mm × 101 mm (24.094" × 15.945" × 3.976") (W × H × D)
• Unilateral Splicing: U/L/R/D: 3.1 mm / 3.1 mm / 3.1 mm / 15.8 mm
• Net Weight: 2.79 kg (6.15 lb)
• Gross Weight: 3.75 kg (8.26 lb)
• Casing Color: Black
• Control Mode: Five-button
• Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95")

Accessory

• Power adapter
• Base
• HDMI cable
• User's manual (QR code)
• Legal and regulatory information
• Etc.

Optional Accessory

• Wall mount

Certification

• Certifications: CE EMC, CE LVD, CE ERP
