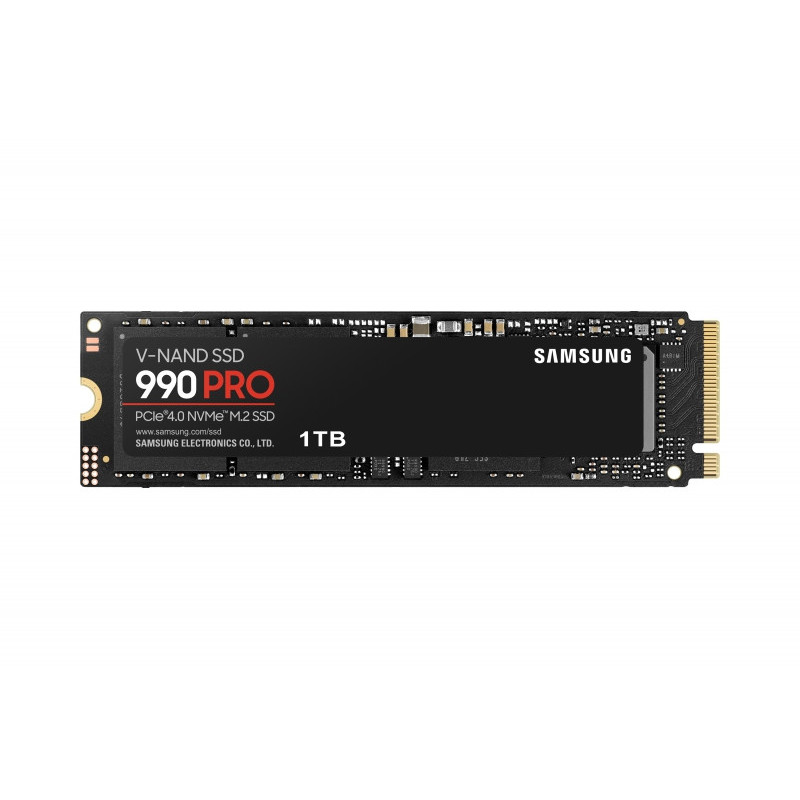

Samsung MZ-V9P1T0BW 1TB 990 Pro M.2 Gen4 SSD

General Feature

• ApplicationClient PCs, Game Consoles
• Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form FactorM.2 (2280)
• InterfacePCIe Gen 4.0 x4, NVMe 2.0
• Dimension (Pack: WxHxD)80 x 22 x 2.3 mm
• WeightMax 9.0g Weight
• Storage MemorySamsung V-NAND 3-bit MLC
• ControllerSamsung in-house Controller
• Cache MemorySamsung 1GB Low Power DDR4 SDRAM

Special Feature

• TRIM SupportSupported
• S.M.A.R.T SupportSupported
• GC (Garbage Collection)Auto Garbage Collection Algorithm
• Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN SupportNot supported
• Device Sleep Mode SupportYes

Performance

• Sequential ReadUp to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential WriteUp to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32)Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32)Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1)Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1)Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level)*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle)Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage3.3 V × 5 % Allowable voltage
• Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
• Operating Temperature0 - 70 × Operating Temperature
• Shock1,500 G & 0.5 ms (Half sine)

Accessories

• Installation KitNot Available

Software

• Management SWMagician Software for SSD management

Warranty

• 5-Year Limited Warranty or 600 TBW Limited Warranty
