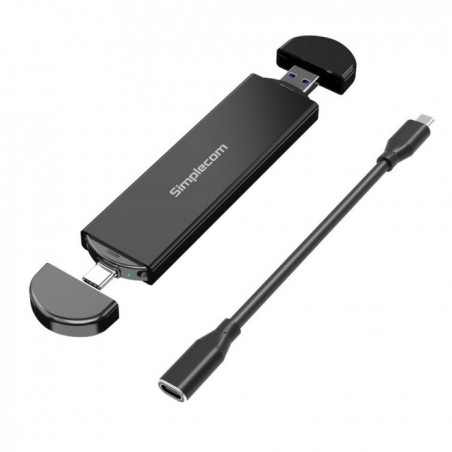

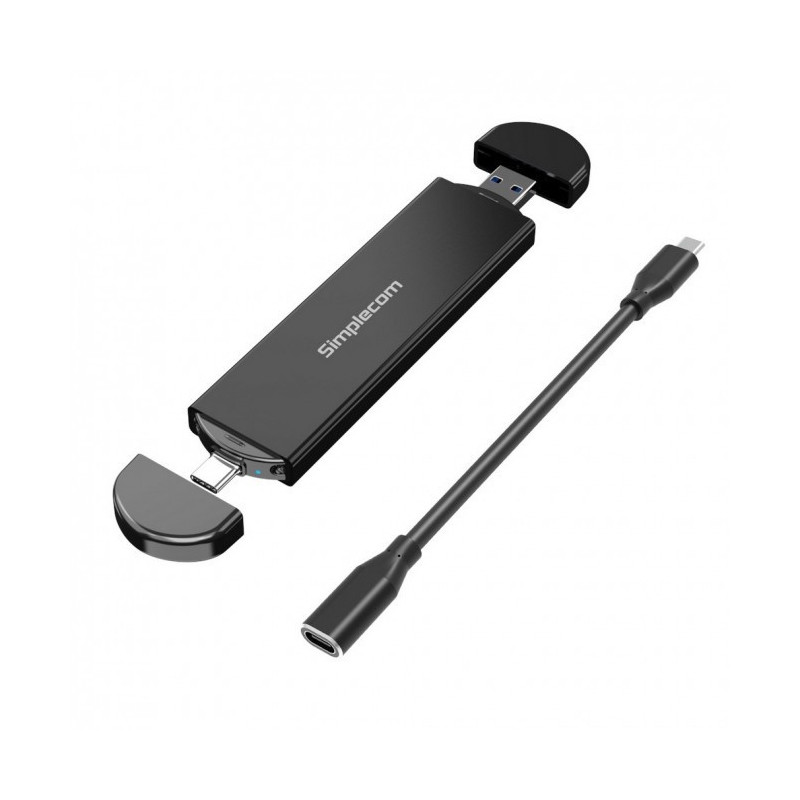

Simplecom SE522 NVMe / SATA M.2 SSD to USB 3.2 Gen 2 Dual USB Connector Enclosure

SE522 is a M.2 SSD to dual USB enclosure, with built-in both USB-A and USB-C connectors. Two USB connectors for convenience and ease of use on different computers. It’s also easy to carry in your pocket, and no need to worry about losing USB cables. SE522 supports both NVMe and SATA protocol based M.2 SSD for maximum compatibility, it can easily turns most M.2 SSD into a portable external USB drive.

Featuring a durable lightweight aluminium casing, it looks elegant and professional, USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. A USB-C extension cable is included for ease of use in tight spaces also to protect the USB-C port on your computer.

Features

• Built-in USB-A and USB-C dual connector
• Convert M.2 SSD (M Key or B+M Key) to a USB portable drive
• Dual protocol support for both NVMe and SATA M.2 SSD
• Premium aluminium exterior with small, portable design
• USB 3.2 Gen 2 interface up to 10Gbps transfer rate
• USB-A port is backward compatible with USB 3.1, 3.0 and 2.0
• USB-C extension cable is included for ease of use in tight spaces
• Plug and play, no drivers required
• LED indicator for power and activity status

Specifications

• Model: SE522
• Connector: USB-C, USB-A
• Interface: USB 3.2 Gen 2 10Gbps
• Material: Aluminium + ABS
• Compatible M.2 Protocol: NVMe M.2, SATA M.2
• Compatible M.2 Size: 2230, 2242, 2260, 2280
• Weight:43g­­
• Dimension: 140x30x9mm (LxWxH)
• Operating System Support: Windows 7 and above, MacOS 10.5 and above

Package Contents

• 1x SE522 NVMe / SATA M.2 SSD Enclosure
• 1x USB-C Male to USB-C Female Extension Cable
• 1x Screw driver
• Standoff and Screw Set

Important Note

• SE522 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
• 10Gbps data transfer rate is only for USB3.2 Gen2 enabled computer (also known as USB3.1 Gen2)
• For new SSD, you need to go into the disk management and initialize the SSD
• Due to high speed of NVMe M.2 SSD, the temperature is higher than traditional USB hard drive, NVMe M.2 SSD is designed to work stably at 60-70 degree in heavy workload
