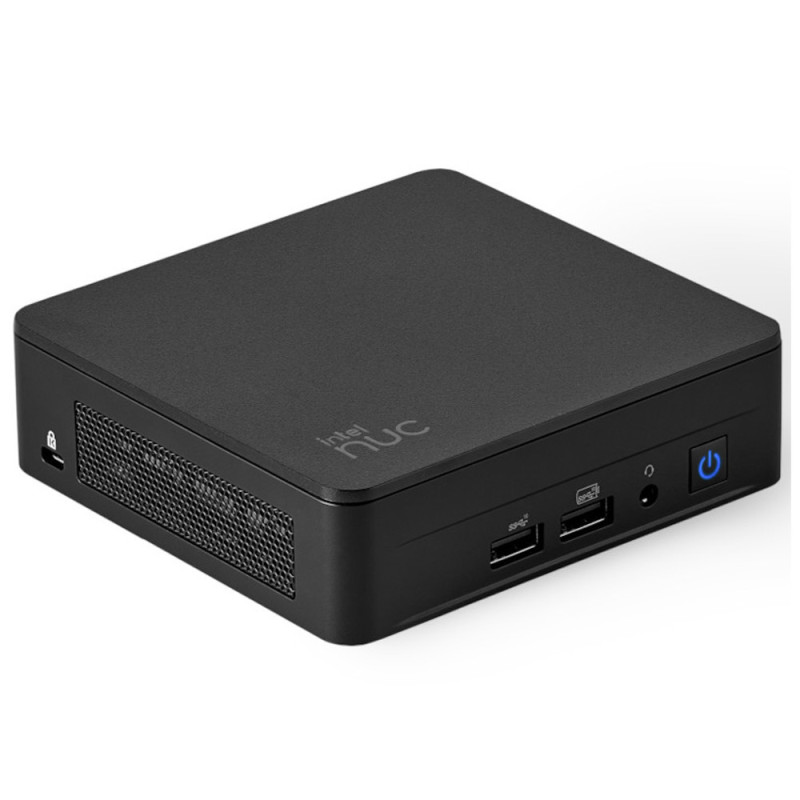

Intel NUC 13 Pro i7-1360P Wi-Fi 6E Barebone Mini Desktop PC

Name: Intel NUC 13 Pro i7-1360P Wi-Fi 6E Barebone Mini Desktop PC
Brand: Intel
SKU: RNUC13ANKI70000
Price: 1139 AUD
Availability: InStock

RNUC13ANKI70000 | Intel

$1,139.00

inc GST Usually dispatched within 1-3 business days

Brand: Intel

Reference: RNUC13ANKi70000

Condition: New

Security policy

Delivery policy

Return policy

Description
Product Details

Essentials

Product CollectionIntel® NUC Kit with 13th Generation Intel® Core™ Processors
Code NameProducts formerly Arena Canyon
Marketing StatusLaunched
Launch DateQ1'23
Expected Discontinuance1H'26
Supported Operating SystemsWindows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu*
Board NumberNUC13ANBi7
Board Form FactorUCFF (4" x 4")
SocketSoldered-down BGA
Internal Drive Form FactorM.2 SSD
# of Internal Drives Supported2
DC Input Voltage Supported12-20 VDC
Processor IncludedIntel® Core™ i7-1360P Processor (18M Cache, up to 5.00 GHz)
Total Cores12
Total Threads16
LithographyIntel 7
Max Turbo Frequency5.00 GHz

Supplemental Information

Included ItemsVESA bracket

Memory & Storage

Max Memory Size (dependent on memory type)64 GB
Memory TypesDDR4-3200 1.2V SODIMMs
Max # of Memory Channels2
Max # of DIMMs2
ECC Memory Supported ^‡No

Processor Graphics

Integrated Graphics ^‡Yes
Graphics Output2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
# of Displays Supported ^‡4

Expansion Options

PCI Express RevisionGen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ^‡PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless)22x30 (E)
M.2 Card Slot (storage)22x80 NVMe (M); 22x42 SATA (B)

I/O Specifications

# of USB Ports4
USB ConfigurationFront: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Serial Port via Internal HeaderNo
Audio (back channel + front channel)Front panel: 3.5mm headphone/mic jack
Integrated LANIntel® Ethernet Controller i226-V
Integrated Wireless^‡Intel® Wi-Fi 6E AX211(Gig+)
Integrated BluetoothYes
Additional HeadersFront_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports2x Thunderbolt™ 4
