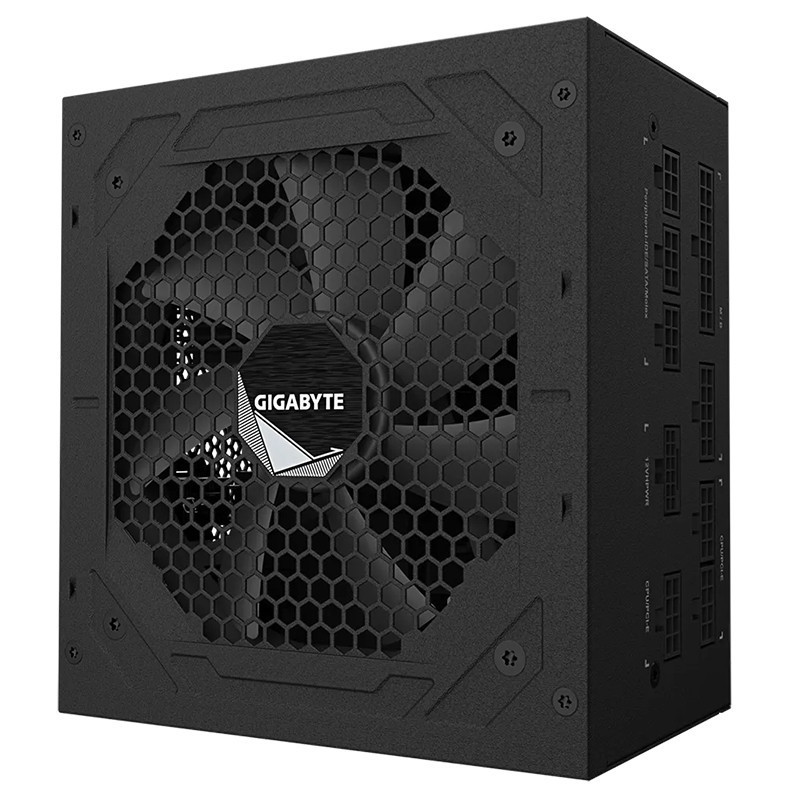

Gigabyte GP-UD850GM PG5 850W 80+ Gold ATX PCIe 5 Fully Modular Power Supply

Name: Gigabyte GP-UD850GM PG5 850W 80+ Gold ATX PCIe 5 Fully Modular Power Supply
Brand: Gigabyte
SKU: GP-UD850GM PG5
Price: 189 AUD
Availability: InStock

GP-UD850GM PG5 | Gigabyte

$189.00

inc GST Usually dispatched within 1-3 business days

Brand: Gigabyte

Reference: GP-UD850GM PG5

Condition: New

Security policy

Delivery policy

Return policy

Description
Product Details

Model
GP-UD850GM PG5
Type
Intel Form Factor ATX 12V
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
850W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
