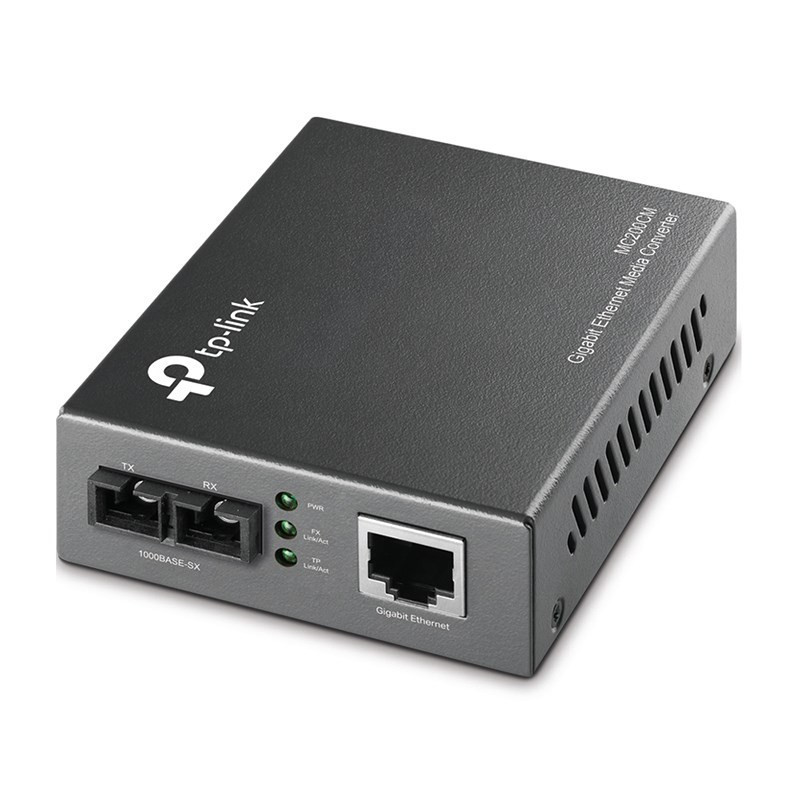

TP-Link Gigabit Ethernet Media Converter (SC, multi-mode)

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fibre cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fibre optic distances utilizing multi-mode fibre up to 0.55 kilometres.

Features:

• Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Supports auto MID/MID-X for TX port
• Provides switch configuration of Force /Auto transfer mode for FX port
• Extends fiber distance up to 0.5km
• Easy-to-view LED indicators provide status to monitor network activity easily
• External power supply

Specifications:

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports
1 1000M SC port
1 1000M RJ45 port (Auto MDI/MDIX)

Network Media
1000BASE-T  UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-FX  Multi-mode Fiber

LED Indicators
PWR, LINK, RX

Safety & Emission
FCC, CE

Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Power Supply
External Power Adapter
